Example 2

EXAMPLE 2

Find the area of the portion of the hyperbolic paraboloid z = x2 - y2 which is inside the cylinder x2 + y2 = 1.

The line integral has an analogue for surfaces called the surface integral. The form of the line integral which is most easily generalized to surfaces is the vector form


where N is the unit normal vector of C. This is convenient because surfaces also have unit normal vectors.

Step 1

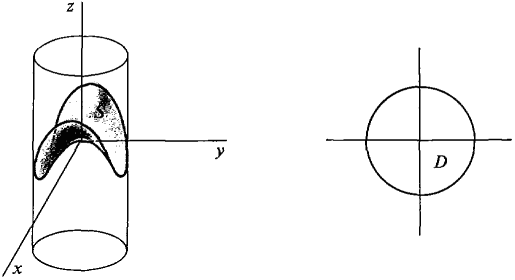

Sketch the region (Figure 13.5.4).


Figure 13.5.4

Step 2

D is the region


or in polar coordinates,

0 ≤ θ ≤ 2π, 0 ≤ r ≤ 1.

Step 3


Then


It is easier to use polar coordinates, where


Put u = 4r2 + 1, du = 8r dr,
